    Laser pipe cutter SEKIRUS P2606M-20600E

    Warranty
    We provide a 2 year warranty
    more about guarantees
    Delivery Methods
    EXW
    LTL/FTL and FCL/LCL shipping
    Ask A Question About This Product
    Apply For A Financing
    • Availability:  In Stock
    • Product Code:  2359-

    Price from $57 000
    Buy

    SEKIRUS - Only reliable machines since 2017
    Effective Manufacturing Solutions
    Customer Service 24/7
    Manufacturer's warranty and post-warranty support
    Training your staff on machine tools
    Convenient ways of financing, leasing, installment plan

    SEKIRUS core product laser pipe cutting machine is widely used in sports equipment, automobile manufacturing, steel and wood furniture, medical equipment, architectural decoration, mechanical equipment, electrical equipment, elevator equipment and other fields. Thanks to the good reputation of customers and the continuous improvement of products, the market recognition of the company's products is increasing, and it is moving towards the goal of "becoming a global leader in the field of fiber laser pipe processing".

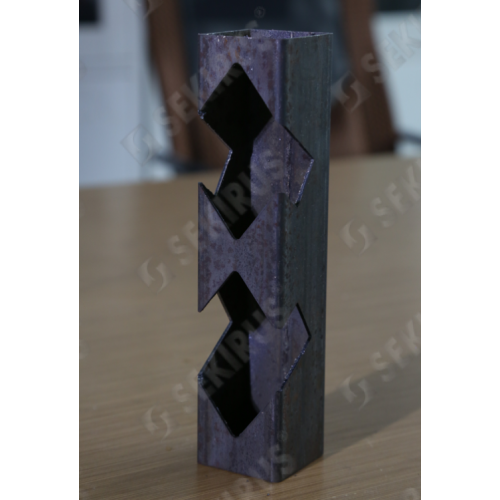

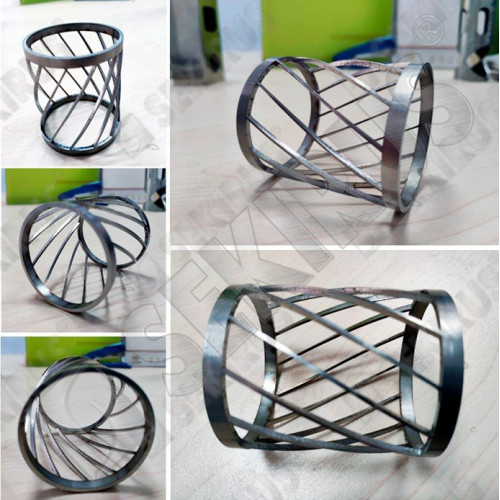

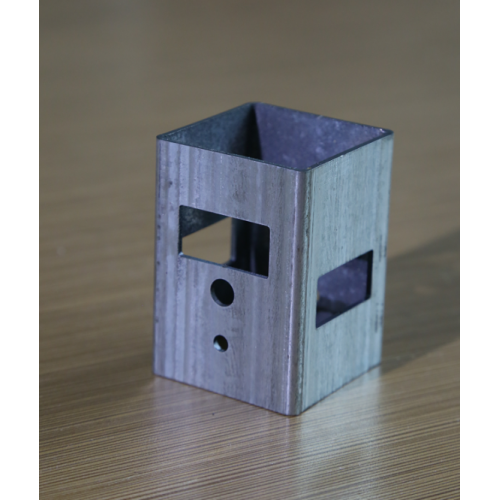

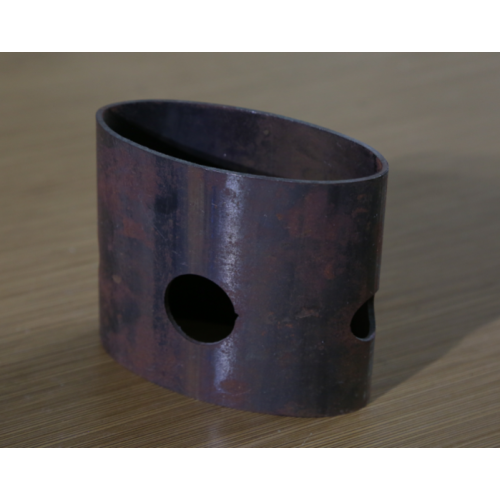

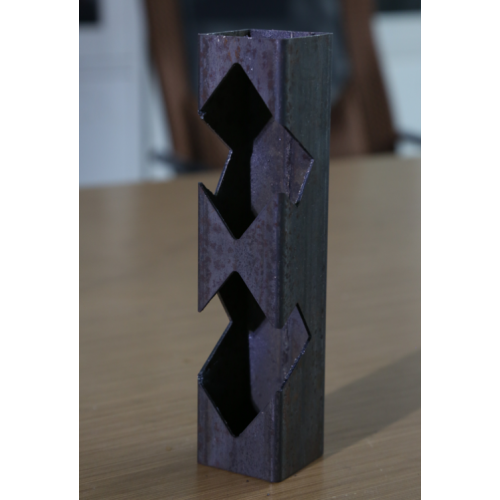

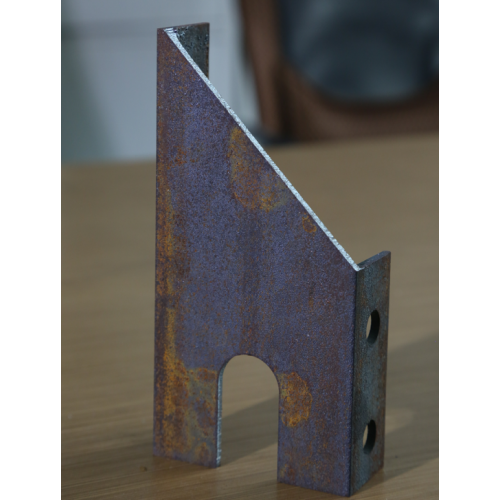

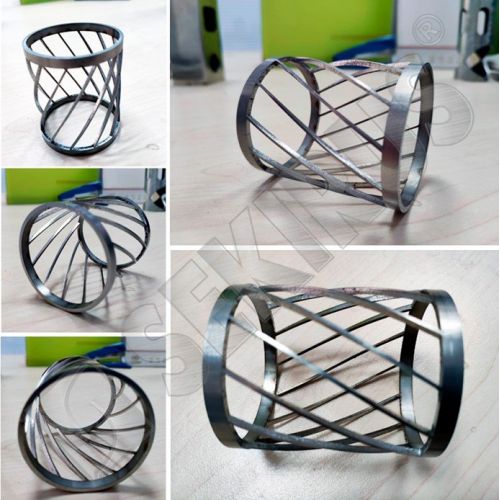

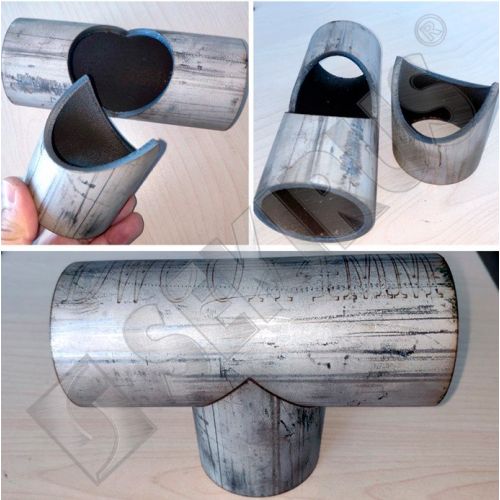

    SEKIRUS laser pipe cutter model from the professional series with a Raycus 1000W fiber source is designed for cutting pipes with a diameter of 20 to 220 mm, a length of 6,0000 mm and a weight of up to 150 kg.

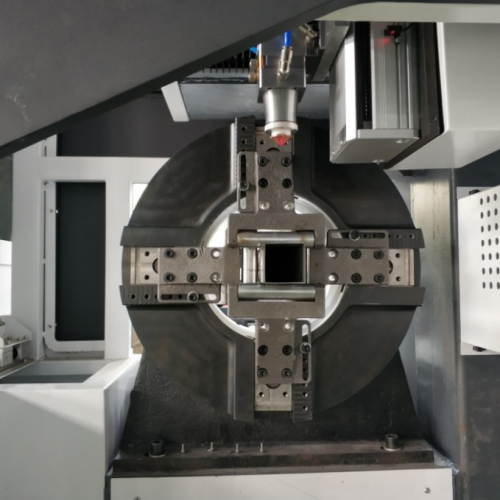

    The front cartridge is made of cast steel. Advantages include:

    • patent design,
    • controlled by hand,
    • hardly break.

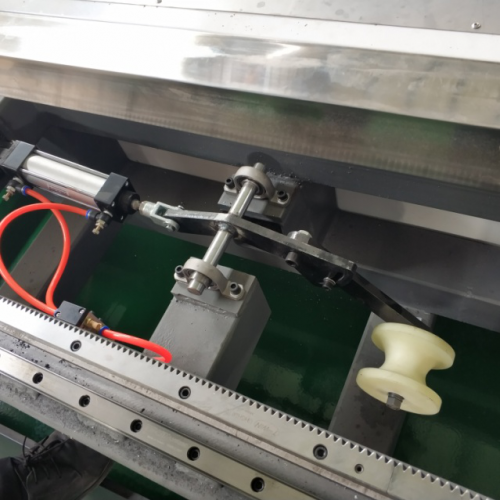

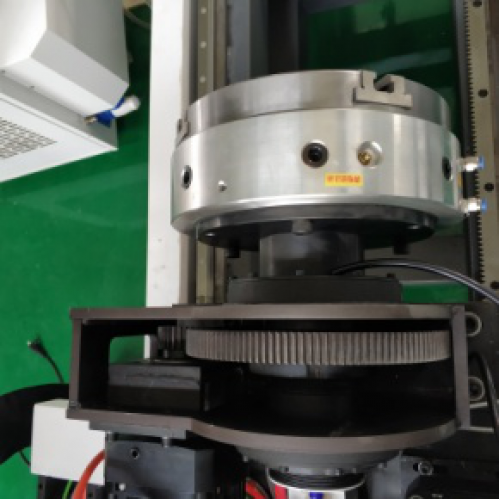

    The rear cartridge is pneumatic. The machine is supplied with a Raytools BM109 autofocus laser head. The kit also includes a pneumatic support for long pipes, protection lenses and nozzles.


    SEKIRUS P2606M-20600E SPECIFICAITON AND QUOTATION

    NO.

    ITEM

    SEKIRUS P2606M-20600E

    1

    CONTROL

    CYPCUT

    2

    LASER RESONATOR

    Raycus 1KW

    3

    LASER HEAD

    RAYTOOLS BM109 AUTOFOCUS

    4

    WATER CHILLER

    Hanli

    5

    SERVO MOTOR

    YASKAWA

    6

    CHUCK

    TYPE

    MANUAL FRONT CHUCK AND

    PNEUMATIC BACK CHUCK

    DIAMETER(mm)

    φ20-φ220

    MIN. WASTE LENGTH(mm)

    190

    RATED RESOLUTION(r/min)

    40

    MAX. RESOLUTION(r/min)

    80

    WEIGHT BEARABLE(TOGETHER)

    150Kg

    7

    X

    TRAVEL

    6400mm

    TRAVELLING RATED SPEED (m/min)

    43

    TRAVELLING MAX. SPEED (m/min)

    86

    8

    Y

    TRAVEL (mm)

    400

    TRAVELLING RATED SPEED (m/min)

    40

    TRAVELLING MAX. SPEED (m/min)

    60

    9

    Z

    TRAVEL (mm)

    180

    TRAVELLING RATED SPEED (m/min)

    30

    TRAVELLING MAX. SPEED (m/min)

    60

    10

    RAIL(TAIWAN BRAND)

    25、20

    11

    TRANSMISSION

    X: 2 MOL 8 LEVEL OF GRINDING

    Y: BALL SCREW

    Z: BALL SCREW

    12

    REDUCER

    KOTEC

    13

    POSITIONNING ACCURACY

    ±0.05/1000mm

    14

    REPEAT POSITIONNING ACCURACY

    ±0.05

    15

    ELECTRICAL PART

    CHINT

    16

    PNEUMATICAL PART

    AirTAC

    17

    EXTRACTION SYSTEM

    SEKIRUS

    18

    SUPPORT

    PNEUMATIC

    19

    DUST EXTRACTION

    OPTION

    20

    BED

    WELDED STEEL TUBE STRUCTURE
